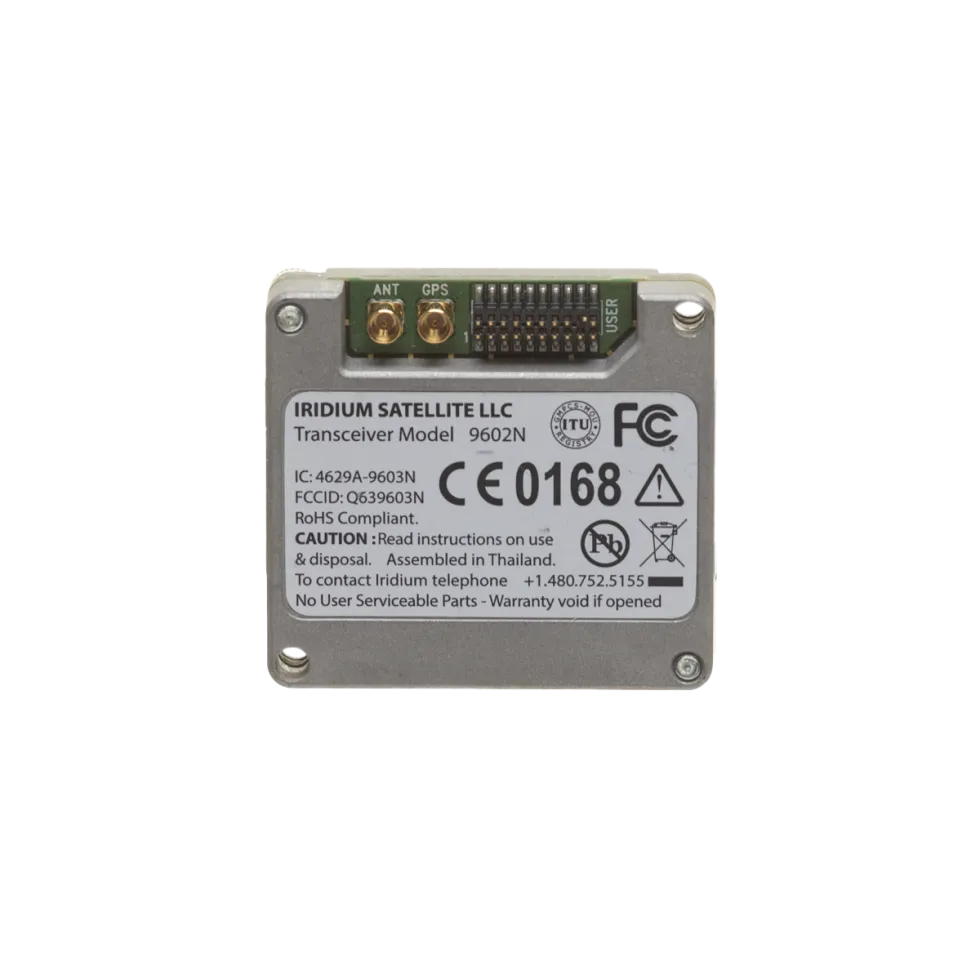

Iridium 9602 Module

Compact Satellite Transceiver for Embedded IoT Applications

The Iridium 9602 Module is a small, lightweight satellite transceiver designed
for integration into IoT and M2M solutions. Powered by the Iridium global network,
it enables reliable two-way data communication anywhere on Earth, making it ideal
for tracking, monitoring, and remote asset management applications.

🌍 Global Coverage via Iridium Satellite Network
📡 Supports Short Burst Data (SBD) Communication
📦 Compact, Lightweight & Low Power Design
🔗 Easy Integration into Embedded Systems (OEM)
📍 Ideal for Tracking, Monitoring & Automation

Categories: GOV-AGENCY, IOT, IRIDIUM, L BAND, LEO, MARINE, SHORT BURST, Terminal, TEXT MESSAGE Brand: IRIDIUM

Description
Additional information

Description

Overview

Iridium 9602 is a compact satellite transceiver module designed for seamless integration into global IoT and M2M communication systems. It operates on the Iridium® satellite network and exclusively supports Short Burst Data (SBD), enabling reliable two-way data communication across the globe. Its small form factor and low power consumption make it ideal for embedded applications in remote and space-constrained environments.

Key Features

Global satellite coverage (pole-to-pole connectivity)
Supports Short Burst Data (SBD) communication
Compact single-board transceiver design
Low power consumption for embedded applications
No SIM card required for operation
Designed for easy integration into OEM solutions
Supports GPS antenna feed for location-based services
RoHS compliant and globally certified

Applications

Asset tracking and fleet management
Maritime vessel monitoring
Equipment and infrastructure monitoring
Remote automation and control systems
Environmental monitoring
IoT and M2M communication solutions

Additional information

Mechanical Specifications	Dimensions: 41.0 × 45.0 × 13.0 mm (L × W × H) Weight: 30 g
Power Parameters	Idle Current (Peak): 170 mA Idle Current (Average): 35 mA Transmission Current (Peak): 1.3 A Transmission Current (Average): 140 mA Receive Current (Peak): 170 mA Receive Current (Average): 40 mA SBD Transfer Current (Average): 150 mA SBD Transfer Power (Average): ≤ 0.8 W
RF Interfaces	Frequency Range: 1616 – 1626.5 MHz Duplexing Method: TDD (Time Domain Duplex) Input/Output Impedance: 50 Ω Multiplexing Method: TDMA / FDMA

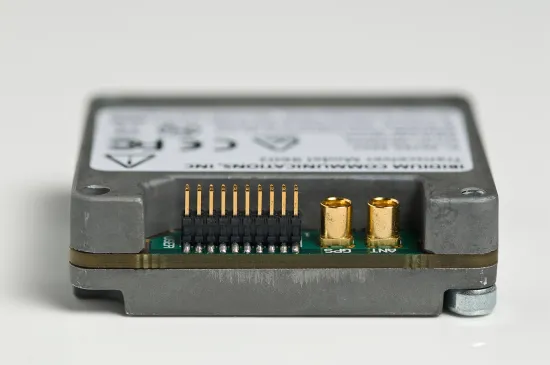

Interfaces	Control Interface: UART (logical level asynchronous serial) Command Interface: AT command set Connector: Single header connector (power, control, UART, network availability) Antenna Connector: MMXC connector for L-band antenna
Environmental Specifications	Operating Temperature: -40°C to +85°C Storage Temperature: -40°C to +85°C Operating Humidity: ≤ 75% RH Storage Humidity: ≤ 93% RH
Regulatory & Compliance	Certifications: FCC (US), CE (EU) Environmental Compliance: RoHS compliant
