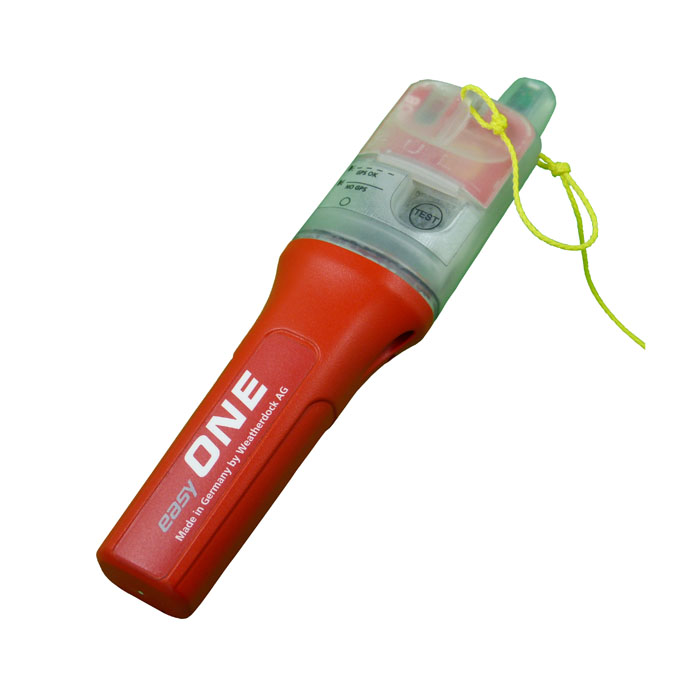

Weatherdock easyONE-IS (vmsIONEER-I-120)

Weatherdock easyONE-IS (vmsIONEER-I-120)

Hybrid AIS & Satellite Vessel Tracking Device with Real-Time Monitoring

Weatherdock easyONE-IS (vmsIONEER-I-120) is a vessel monitoring device that
combines AIS VHF communication with Iridium® satellite connectivity to provide
reliable tracking and alerting beyond coastal coverage. It enables real-time
position reporting, fleet management, and enhanced maritime situational awareness.

🌍 Global Tracking via Iridium Satellite Network
📡 AIS Class B Communication over VHF
📍 Real-Time Vessel Monitoring & Reporting
🛰 Automatic Switching to Satellite Communication
🚨 Push-to-Alert Emergency Messaging
🗺 Geo-Fencing for Restricted Zone Monitoring
🔗 Optional Bluetooth Connectivity with Mobile Apps

Description

Weatherdock easyONE-IS (vmsIONEER-I-120) is a vessel monitoring and tracking device designed for continuous position reporting and fleet management. It combines AIS-based VHF communication with Iridium® satellite connectivity to ensure reliable tracking and alerting even beyond coastal coverage. With real-time reporting, geo-fencing, and bi-directional communication, the system provides enhanced situational awareness for maritime operations, fisheries management, and coastal security.


     Key Features

  • Hybrid communication (AIS VHF + Iridium® satellite)
  • Real-time vessel tracking and monitoring
  • Bi-directional satellite communication
  • AIS Class B CSTDMA technology
  • Geo-fencing functionality for restricted zones
  • Push-to-alert emergency button (AIS alert message)
  • Automatic switching to satellite beyond coastal range
  • Route data storage for tracking movement history
  • Tamper detection with alert notifications
  • Optional Bluetooth connectivity with mobile apps

     Typical Applications

  • Vessel monitoring systems (VMS)
  • Fisheries management and compliance (IUU)
  • Coastal security and border monitoring
  • Fleet tracking and management
  • Maritime safety and emergency alerting

Additional information

Mechanical Specifications

Dimensions: 130 × 70 × 30 mm
Weight: 250 g

Communication & Networking

VHF Frequency Range: 156.025 – 162.025 MHz (25 kHz channel spacing)
Satellite Network: Iridium®
Communication Type: Bi-directional satellite communication
AIS Technology: Class B CSTDMA

RF & Power

Transmission Power: ≥ 2 W

Environmental Specifications

Operating Temperature: -10°C to +55°C
Storage Temperature: -30°C to +60°C

Features & Functionality

Geo-Fencing: Supported
Emergency Alert: Push-to-alert AIS emergency message
Route Data Storage: Supports long-range waypoint storage
Tamper Detection: Alert on unauthorized access
Customization: Programmable vessel and ID data

Interfaces & Integration

Bluetooth: Optional BLE connectivity with mobile apps

Power Options

Charging Station: Dedicated charging unit available
External Power: 9–32 V DC (vessel power integration)
Solar Support: Compatible with solar power supply
