Iridium Edge

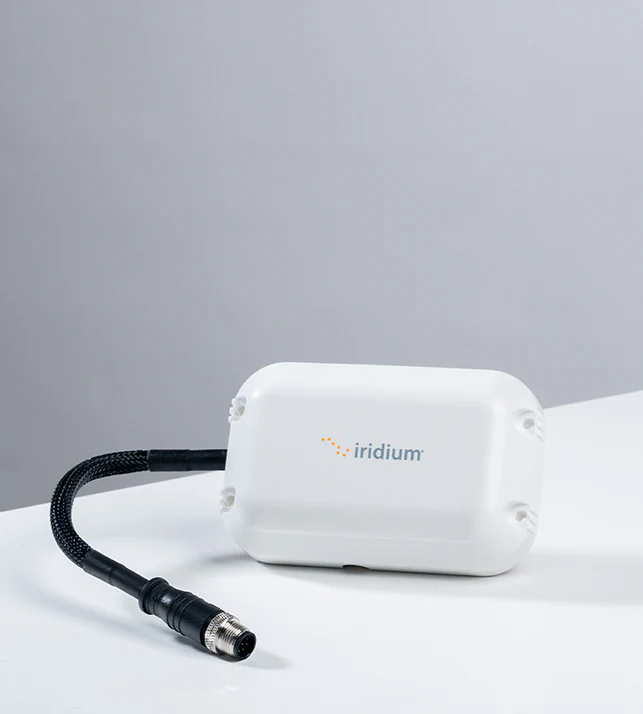

Iridium Edge®

Rugged Satellite IoT Device for Global Asset Management & Connectivity

Iridium Edge® is a cost-effective, rapidly deployable satellite IoT device
designed to complement existing terrestrial-based solutions and enable global
connectivity. It provides reliable communication for asset tracking and monitoring
applications, even in remote and challenging environments.

  • 🌍 Global Connectivity via Iridium Satellite Network
  • 📡 Supports Short Burst Data (SBD) Communication
  • 🔗 Easy Integration with Existing IoT Solutions
  • ⚡ Rapid Deployment with Reduced Development Time
  • 🛡 Rugged & Reliable for Remote Environments

Description

Overview

Iridium Edge® is a compact, plug-and-play satellite IoT device designed to enable global asset tracking and monitoring. Powered by the Iridium® network, it provides reliable, real-time data connectivity across remote and challenging environments where terrestrial networks are unavailable.

Key Features

  • Global satellite coverage (pole-to-pole connectivity)
  • Integrated GPS for precise location tracking
  • Low power consumption for long-term deployments
  • Easy integration with cloud platforms
  • Rugged and weather-resistant design

Applications

  • Fleet tracking and logistics
  • Maritime vessel monitoring
  • Remote asset tracking
  • Oil & gas operations
  • Agriculture and environmental monitoring

Technical Specifications

  • Network: Iridium Satellite Network
  • GPS: Integrated
  • Power: Low-power operation
  • Connectivity: Serial / GPIO interfaces
  • Operating Environment: Industrial-grade

Additional information

MECHANICAL SPECIFICATIONS

Dimensions 130 mm X 80 mm x 30 mm (L x W x H) Weight 320 g MatingConnector M12 – 818 pin male (terminated on 20cm pigtail cable)

POWER PARAMETERS

Power Supply (9 – 32V), Maximum: 1.6W Load Dump SAE J1455 Load Dump Protected Low Power Modes < 200µA

INTERFACES

RS232 AT Command Interface On/Off Control Lines

ENVIRONMENTAL SPECIFICATIONS

Storage Temperature – 40 C to 85 C Operating Temperature – 40 C to 85 C Vibration SAE J1455 Section 4.10 Ingress Protection IP67

REGULATORY STANDARDS AND COMPLIANCE*

US (FCC), EU (CE Mark) * For complete information on local in-country approvals, refer to an authorized Iridium Service Provider
